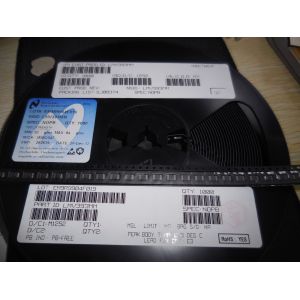

    Buy cheap LMV393MM VSSOP8 Integrated Circuit New And Original from wholesalers

    Buy cheap LMV393MM VSSOP8 Integrated Circuit New And Original from wholesalers
    • Buy cheap LMV393MM VSSOP8 Integrated Circuit New And Original from wholesalers

    LMV393MM VSSOP8 Integrated Circuit New And Original

    Ask Lasest Price
    Brand Name : TI
    Model Number : LMV393MM
    Supply Ability : 16500pcs
    Delivery Time : 3
    Price : Negotiate
    • Product Details
    • Company Profile

    LMV393MM VSSOP8 Integrated Circuit New And Original

    ISO9001.pdf


    LMV393MM/LMV393MMX is a low-power, dual comparator integrated circuit manufactured by Texas Instruments. It has a wide input voltage range and adjustable threshold voltage, suitable for low voltage battery powered applications. The following are its applications, conclusions, and parameters:
    Application:
    Low power circuit
    Battery powered circuit
    Voltage monitoring circuit
    Analog signal acquisition circuit
    Switch circuit
    Conclusion:
    LMV393MM is a low-power, dual comparator integrated circuit suitable for low-voltage battery powered applications.
    It has a wide input voltage range and adjustable threshold voltage.
    It has the characteristics of low power consumption, high speed, excellent input bias current, and low voltage operation.
    It is suitable for applications such as low-power circuits, battery powered circuits, voltage monitoring circuits, analog signal acquisition circuits, and switching circuits.
    Parameters:
    Input voltage range: 1.6V to 5.5V
    Output voltage range: 0V to VCC
    Response time: 1.3 μ s
    Input bias current: 25nA
    Working temperature range: -40 ° C to 85 ° C
    Packaging: VSSOP-8


    EU RoHSNot Compliant
    ECCN (US)EAR99
    Part StatusActive
    HTS8542.39.00.01
    SVHCYes
    SVHC Exceeds ThresholdYes
    AutomotiveNo
    PPAPNo
    Manufacturer TypeLow Voltage Comparator
    Number of Channels per Chip2
    Rail to RailRail to Rail Output
    Process TechnologyBiCMOS
    Maximum Propagation Delay Time (ns)600(Typ)
    Output TypeOpen Collector
    Maximum Operating Supply Voltage (V)5
    Maximum Input Offset Voltage (mV)7@5V
    Minimum Single Supply Voltage (V)2.7
    Maximum Single Supply Voltage (V)5
    Typical Voltage Gain (dB)93.98
    Typical Voltage Gain Range (dB)90 to 110
    Maximum Input Bias Current (uA)0.25@5V
    Maximum Supply Current (mA)0.2@5V
    Typical Output Current (mA)84@5V
    Maximum Test Temperature (°C)85
    Minimum Test Temperature (°C)-40
    Power Supply TypeSingle
    Minimum Operating Temperature (°C)-40
    Maximum Operating Temperature (°C)85
    Supplier Temperature GradeIndustrial
    PackagingTape and Reel
    MountingSurface Mount
    Package Height0.95(Max)
    Package Width3.1(Max)
    Package Length3.1(Max)
    PCB changed8
    Standard Package NameSOP
    Supplier PackageVSSOP
    Pin Count8
    Lead ShapeGull-wing
