| Brand Name : | TI |

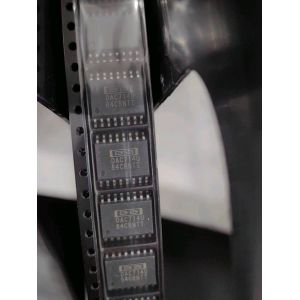

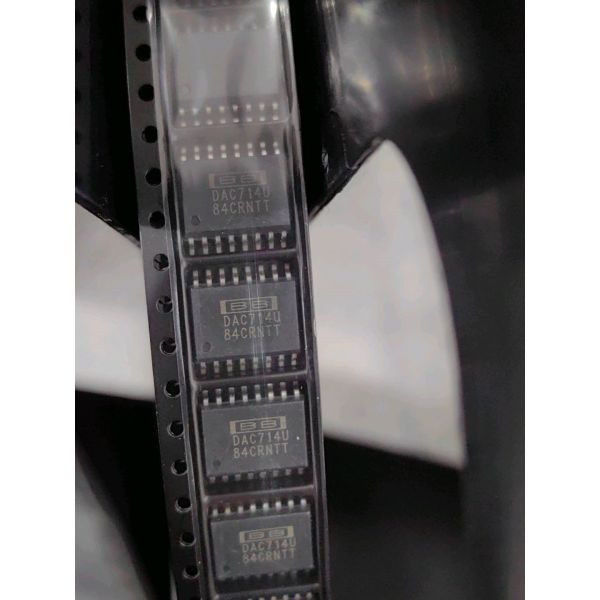

| Model Number : | DAC714U |
| Supply Ability : | 18450pcs |
| Delivery Time : | 3 |
| Price : | Negotiate |
Application:
DAC714U is a 16 bit low-power DAC chip mainly used in industrial
control, instrumentation, audio processing, and other fields. This
chip has the characteristics of high precision, low noise, and low
drift, which can meet the needs of various application scenarios.
Conclusion:
DAC714U is a high-performance DAC chip with the following
conclusions:
High output accuracy: 16 bit output resolution, which can achieve
high-precision output;
Low noise: Internal voltage stabilizer and power suppression
circuit are used to effectively reduce noise;
Low drift: The temperature drift is small, which can make the
output more stable;
Low power consumption: Adopting CMOS technology, low power
consumption, suitable for low-power applications.
Parameters:
The main parameters of DAC714U are as follows:
Output resolution: 16 bits;
Working voltage: 2.7V~5.5V;
Output voltage range: 0V~VREF;
Maximum output current: 5mA;
DNL (differential nonlinearity): ± 0.5LSB;
INL (integrated nonlinearity): ± 4LSB;
Communication interface: SPI;
Packaging form: TSSOP-16.
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Converter Type | General Purpose |
| Architecture | R-2R |
| Resolution | 16bit |
| Conversion Rate | 86ksps |
| Number of DAC Channels | 1 |
| Number of Outputs per Chip | 1 |
| Maximum Settling Time (us) | 10 |
| Digital Interface Type | Serial (2-Wire) |
| Output Type | Voltage |
| Output Polarity | Unipolar|Bipolar |
| Voltage Reference | Internal |
| Maximum Dual Supply Voltage (V) | ±16.5 |
| Power Supply Type | Dual |
| Maximum Power Dissipation (mW) | 625 |
| Integral Nonlinearity Error | ±8LSB |
| Full Scale Error | ±0.25%FSR |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Tube |
| Mounting | Surface Mount |
| Package Height | 2.35(Max) |
| Package Width | 7.6(Max) |
| Package Length | 10.5(Max) |
| PCB changed | 16 |
| Standard Package Name | SO |
| Supplier Package | SOIC |
| Pin Count | 16 |
| Lead Shape | Gull-wing |
|
|
